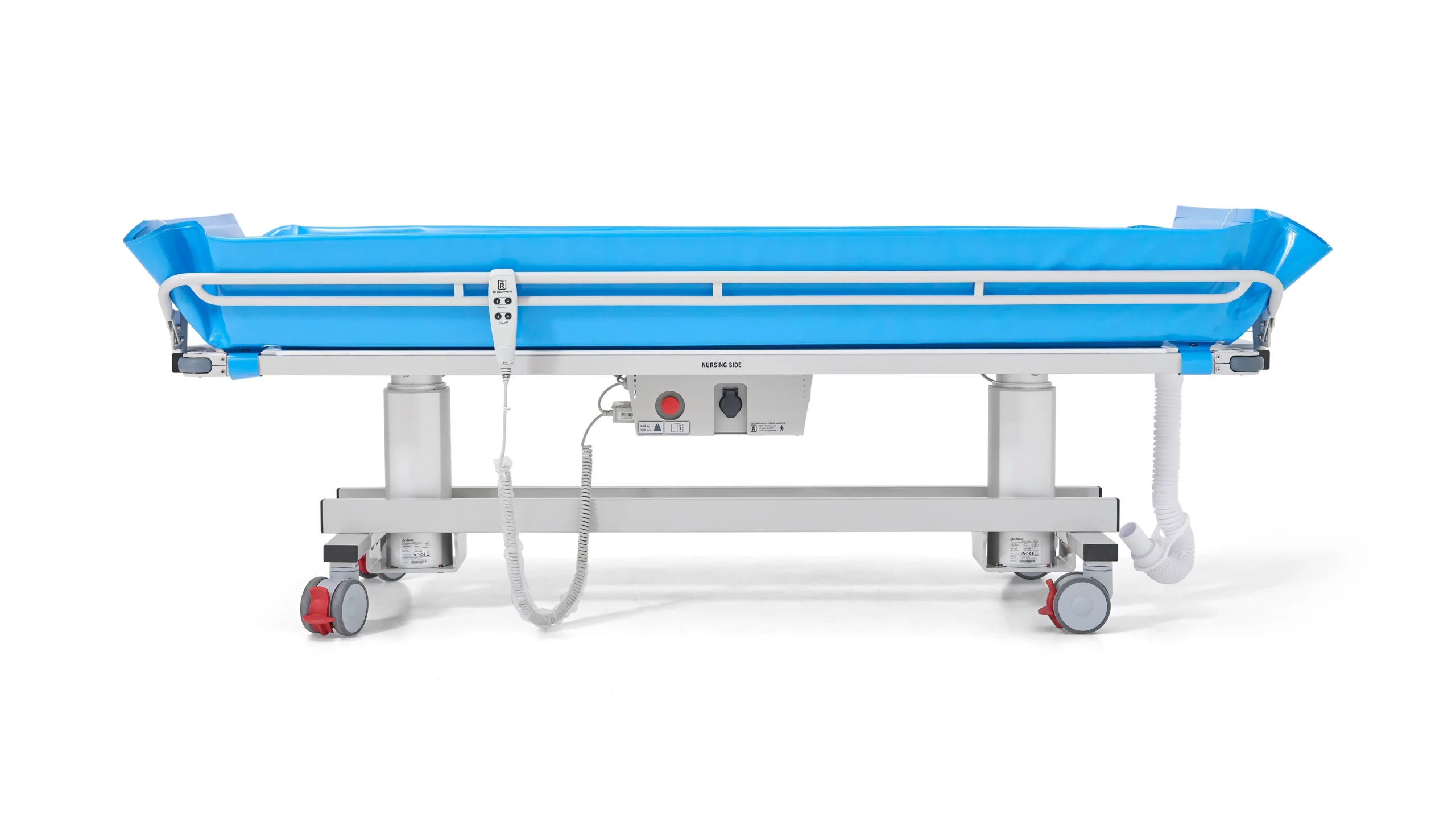

TR 3200 Shower Trolley

TR 3200 Shower Trolley

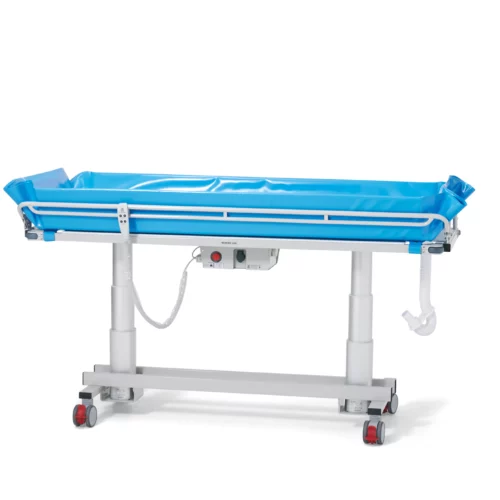

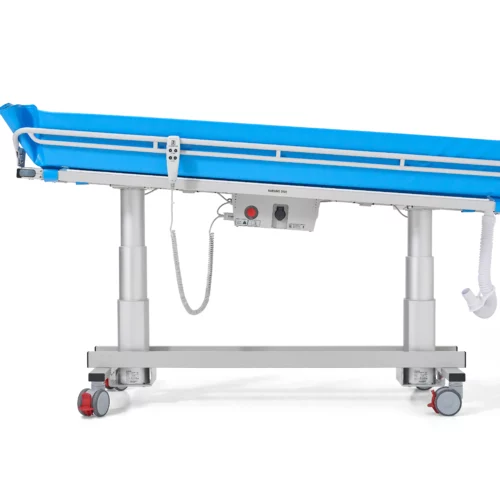

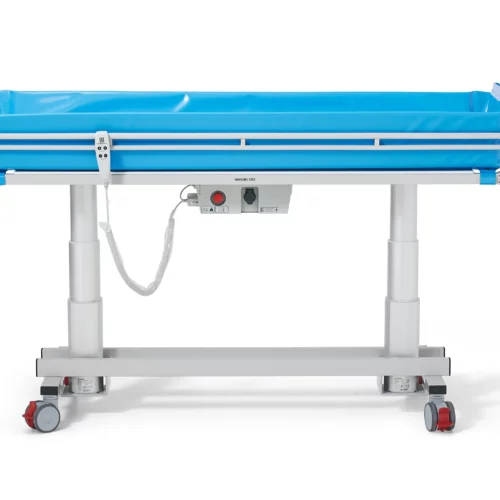

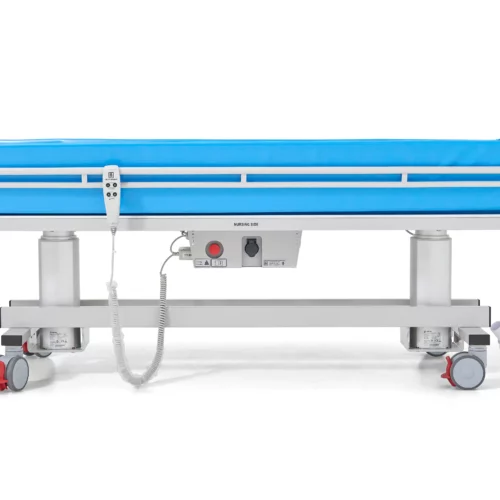

The TR 3200 Battery-Operated Shower Trolley is a versatile and ergonomic solution for safe patient transfers and comfortable care. With a 230 kg (500 lbs) capacity, it features dual side-mounted columns for enhanced bed overlap, ensuring smooth and secure transfers. Its dual drainage system allows flexible patient positioning in either direction, providing added convenience for caregivers. Available in two sizes, the TR 3200 offers a choice between onboard or removable rechargeable batteries and is IPX5-rated for water resistance. Delivered ready to use, it includes a MagCode charger, mattress, head pillow, four braked castors, and a 1-meter drainage hose.

Description

TR 3200 Battery-Operated Shower Trolley – Safe, Ergonomic, and Versatile The TR 3200 Shower Trolley is a multi-functional solution designed to provide a safe and ergonomic working environment for caregivers while ensuring maximum comfort and security for patients. With a weight capacity of up to 230 kg (500 lbs), the TR 3200 features dual side-mounted columns, enabling the stretcher to overlap the shower bed further for smooth and safe transfers. Its dual drainage system allows the patient to be positioned in either direction, offering unmatched flexibility for caregivers. Available in two sizes, the TR 3200 is equipped with your choice of an onboard rechargeable battery or a removable battery system. Fully IPX5-rated for water resistance, it is built to handle the demands of daily care with ease. Each model comes fully equipped with a MagCode charger, comfortable mattress, head pillow, four braked castors, and a 1-meter flexible drainage hose, ready for immediate use.

Features

Specification

Name Specification
Length (4 Models) Standard = 1900mm, Short = 1600mm, Long = 2100mm
Width All Models 640mm
Height Min. 600mm, Max. 900mm
Max Patient Weight 200kg
Chassis/Frames Powder Coated Stainless Steel
Floor Clearance 160mm (Height of the base allows mobile sling lift transfers)
Castors 4 Braked twin castors. 100mm as standard (Straight steering castors available as an option)

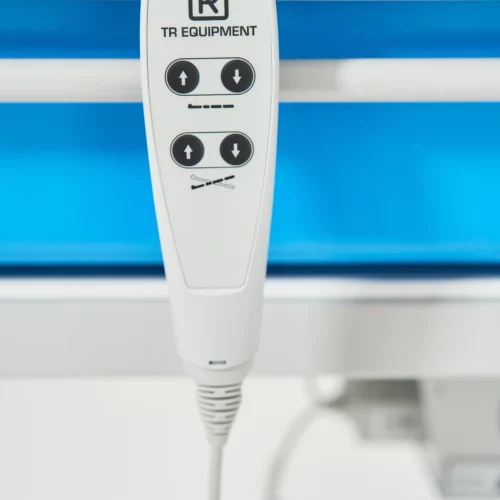

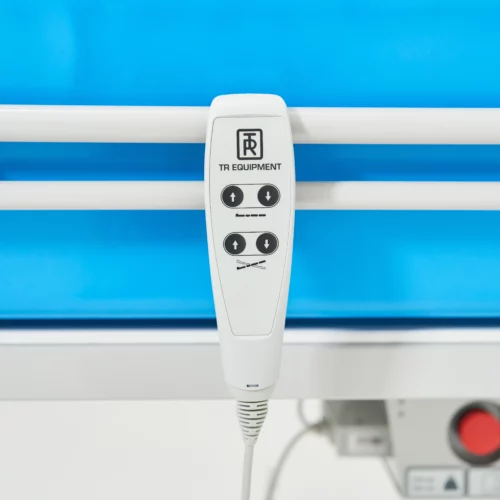

Control Foot operated control for height (Hand control available as option)

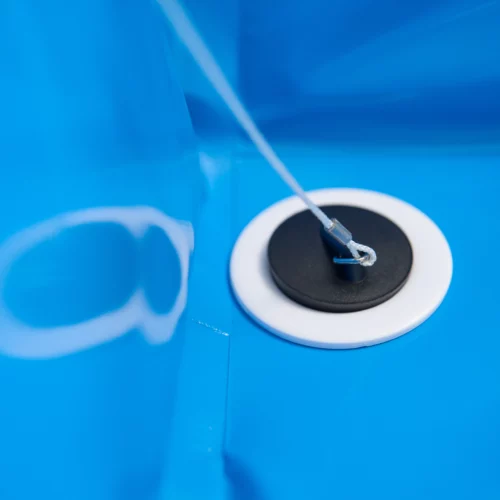

Mattress, pillow Blue, both in flame retardant material, mattress with dual drainage

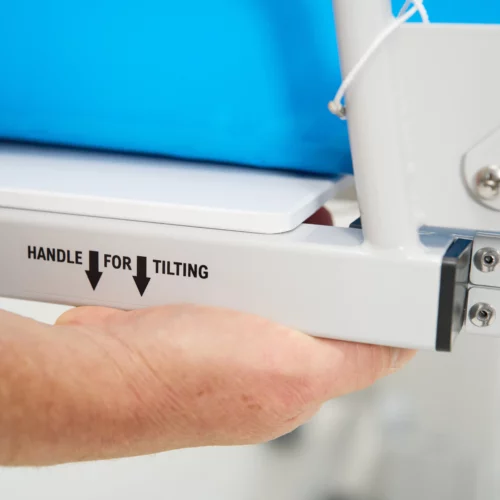

Tilt Manual tilt adjustment on both sides, +/- 4 degrees
Battery on board 24v, 7AH / Removeable LiON 24v, 5 AH. Buzzer for low battery
Protection Class Electronics Complete Unit IPX5 (Hand control and removeable batteries IPX6)

Frequently Asked Questions

The TR 3200 features dual side-mounted columns, enabling the stretcher to overlap the bed further for safer and easier patient transfers. It also has dual drainage points, allowing the patient to be positioned in either direction, enhancing caregiver convenience.

The TR 3200 comes in two sizes: 1950 mm x 695 mm 2150 mm x 795 mm

The TR 3200 has a working load limit of 230 kg (500 lbs).

The TR 3200 is available with an onboard rechargeable battery or a removable rechargeable battery system.

Yes, the TR 3200 features height adjustability from 500 mm to 900 mm for ergonomic caregiver use.

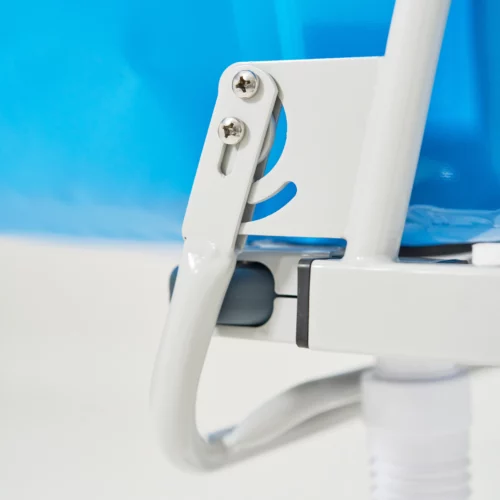

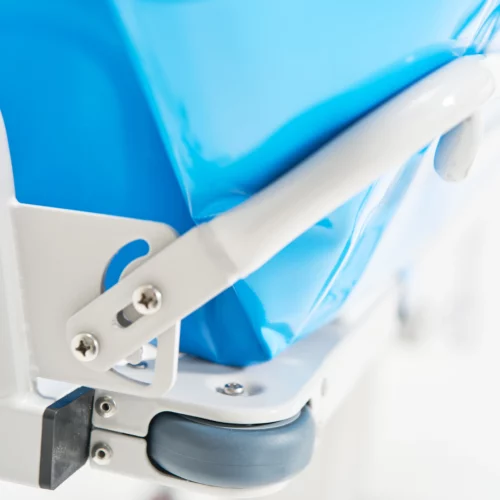

The trolley includes foldable side rails for secure patient transfers, rubber bumper wheels to protect doors and walls, and braked twin castors for stability.

Yes, it features manual tilt adjustment, including a Trendelenburg position.

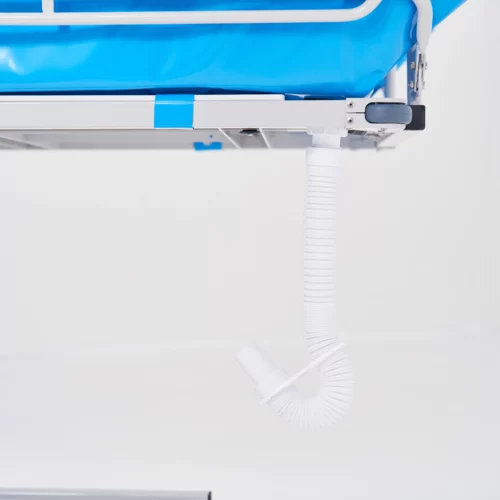

Each trolley comes equipped with a MagCode charger, mattress, head pillow, 1-meter drainage hose with a holder, and four braked castors.

Yes, its powder-coated stainless steel frame ensures durability and easy cleaning.

Yes, the side rails can be folded inwards to navigate narrow spaces with ease.

Accessories include backrest wedge pillows (15° or 30°), longer drainage hoses (2.5 m), mattress fasteners, straight steering castors, and the removable battery system.

The complete unit is rated IPX5 for water resistance, while the hand control and removable battery are rated IPX6.

With its height adjustability and ergonomic design, the TR 3200 reduces static load and prevents back injuries, creating a safer working environment for caregivers.
