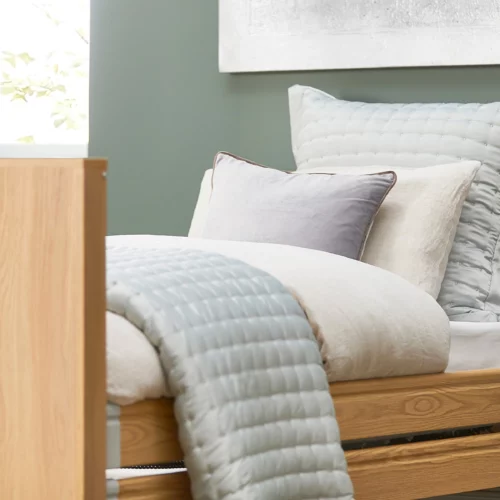

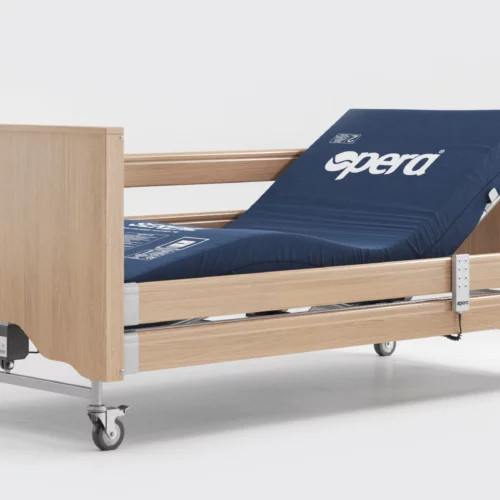

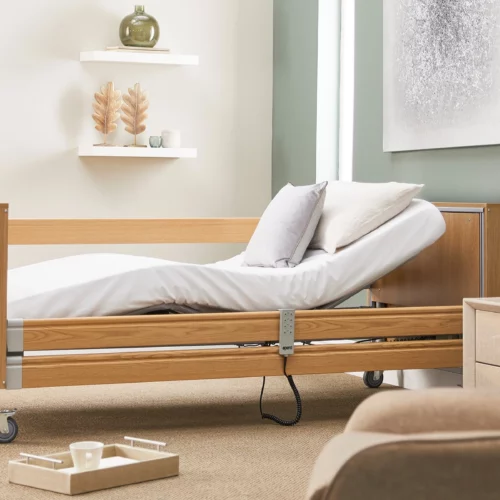

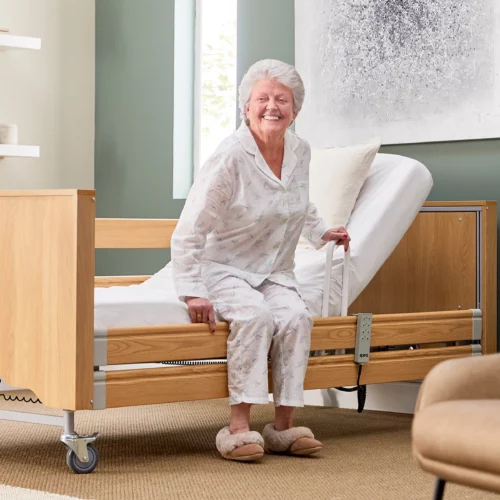

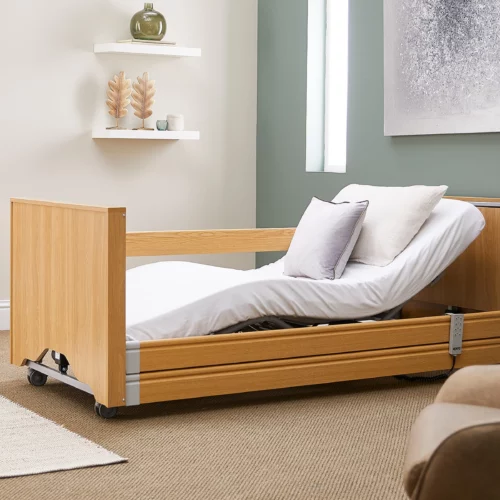

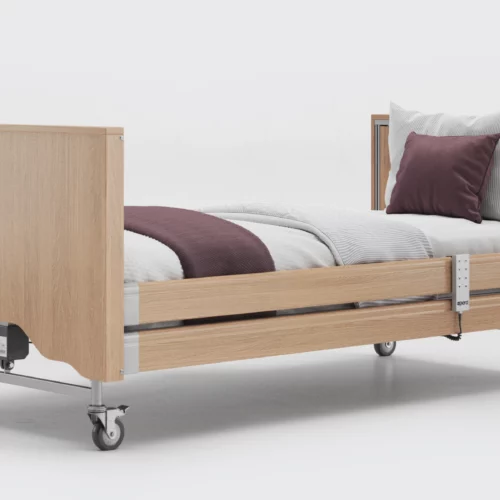

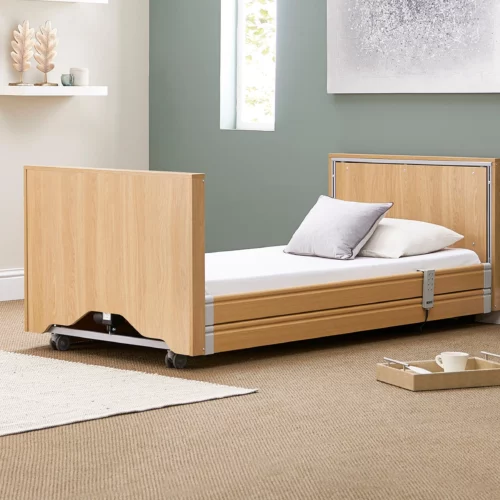

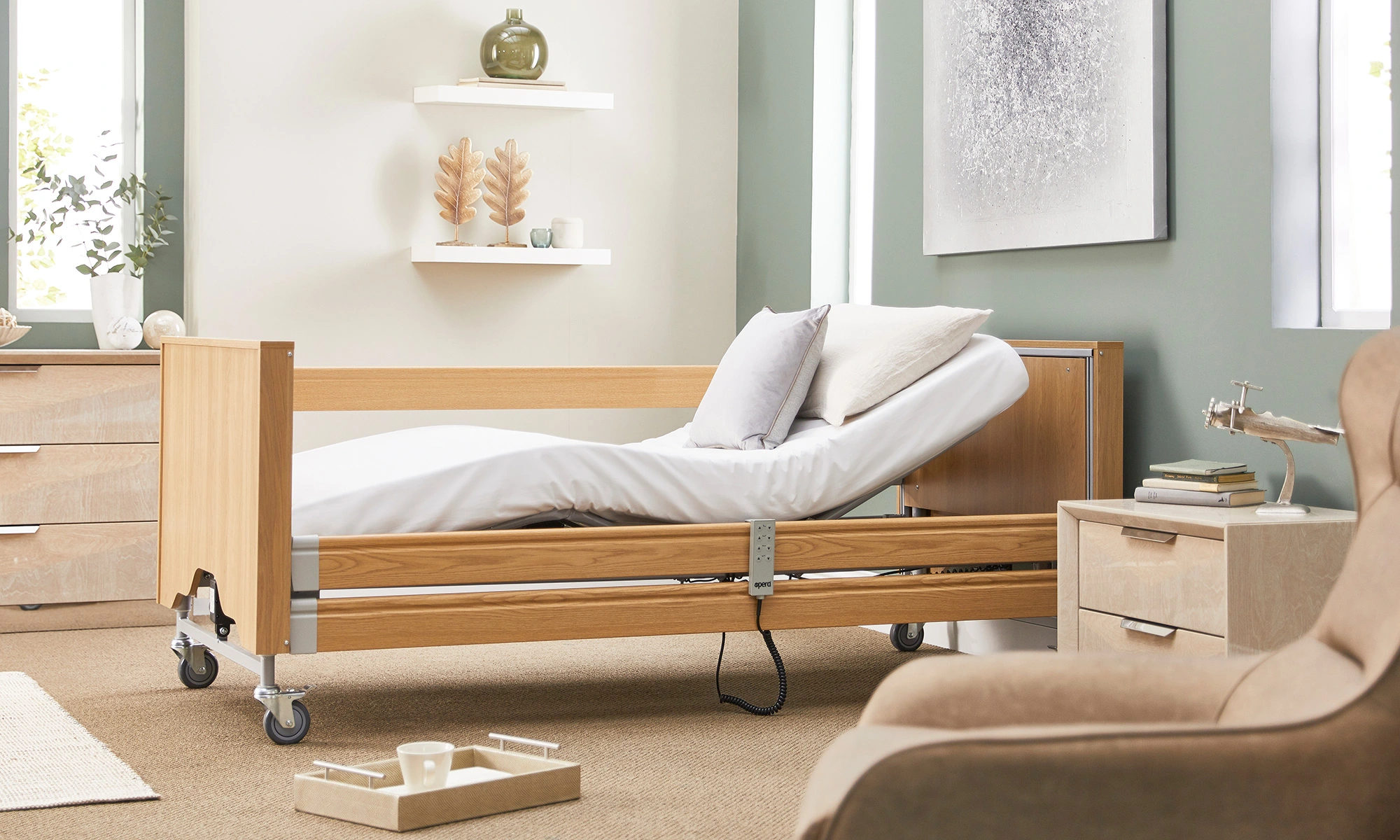

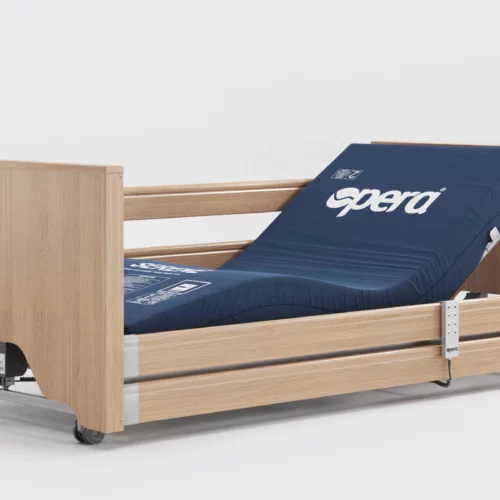

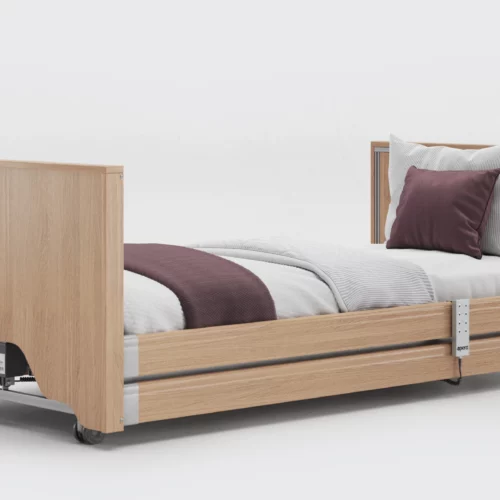

Discover the timeless elegance and versatility of the Classic profiling bed, designed to seamlessly blend practicality with functionality. Encased in a charming wooden frame, this bed can be equipped with optional side rails for enhanced safety. The Classic bed effortlessly elevates to waist height, facilitating on-bed care, and lowers for easy access. Tailored for individuals with limited mobility or disabilities, it offers unparalleled comfort through adjustable back and leg support.
| Name | Specification |
|---|---|
| Height Range (floor to top of mattress platform) | 400-800mm |
| External Length | 2180mm |
| External Width | 1055mm |
| External Height (in lowest position) | 890mm |
| External Height (in highest position) | 1295mm |
| Mattress Depth Capacity (Compatible with side rails) | Up to 203mm |
| Mattress Platform Length | 2000mm |
| Mattress Platform Width | 900mm |
| Maximum User Weight | 185kg |
| Safe Working Load | 220kg |
| Maximum (Anti-) Trendelenburg Angle | 11.5º |
| Maximum External Length (in Trendelenburg) | 2300mm |
| Back Rest Length | 745mm |
| Thigh Rest Length | 350mm |
| Leg Rest Length | 540mm |
| Maximum Back-rest Angle | 70º |
| Maximum Leg-rest Angle | 30º |
| Power Cord Length | 2100mm |
| Hoist Clearance | Unrestricted |
| 4 Braked Twin Castors | 100mm |
| Electric Shock Protection (DIN EN 60601-2) | Group 2 Class B (CISPR11) |
| Ingress Protection (EN 60529) | Power supply is IPX4, Motor units are IPX4, Control Box is IPX6 and the Handset is IPX4 |
| Battery for Emergencies (EN 60601-2-52) | 9V Block Battery (Alkaline Manganese type 6LR61) |
